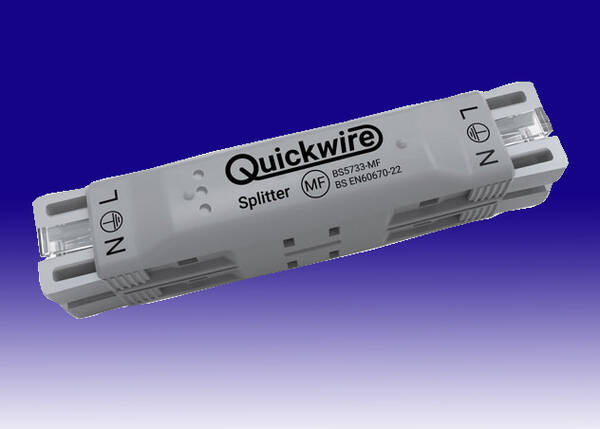

Quickwire Splitter Junction Box - Maintenance Free
Product Code: QW SP34
5060546250012
QSP34
Loading …
23mm x 31mm x 84mm (wired)
Conductor Size:
1.0mm² - 1.5mm²
Twin & Earth (CPC) Solid cores
Class 1 (conductors)
Note:
This product is designed for lighting installations only
Quickwire
Splitter Junction Box
Maintenance Free
Splitter Junction Box
Maintenance Free
A revolutionary new pre-wired and maintenance free junction box

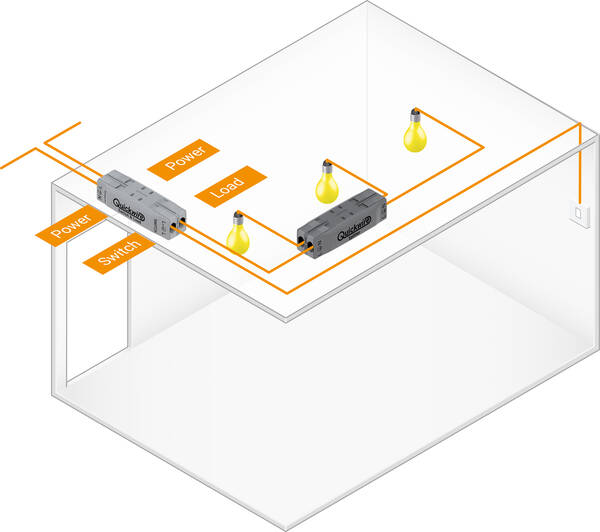

A Quickwire Splitter can be used to increase the number of load/power outputs on a Quickwire Switch & Load.
Simply connect the load inlet of a Switch & Load to one of the four load inlets on a Splitter.
It can also be used simply to distribute feeds/power.
A Quickwire junction box is remarkably simple - there are no screws, covers, clips or clamps.
All you have to do is strip your cable before pushing it into the cable entry points.
As you push the cable, the cores are guided into their correct terminals before a clever
(patented) shuttle design clamps down on the cable, completing the connection.
Rating: 16A, 250V a.c.
IP Rating: IP30
BS EN60670-22, BS 5733-MF
A Quickwire Splitter can be used to increase the number of load/power outputs on a Quickwire Switch & Load.
Simply connect the load inlet of a Switch & Load to one of the four load inlets on a Splitter.
It can also be used simply to distribute feeds/power.
A Quickwire junction box is remarkably simple - there are no screws, covers, clips or clamps.
All you have to do is strip your cable before pushing it into the cable entry points.
As you push the cable, the cores are guided into their correct terminals before a clever
(patented) shuttle design clamps down on the cable, completing the connection.
Rating: 16A, 250V a.c.
IP Rating: IP30
BS EN60670-22, BS 5733-MF
- No need to sleeve earth (another great time saver)
- Maintenance free
- Fits through a 32mm hole (it’s probably the smallest junction box out there and can fit through a downlighter hole with ease!)
- Reusable (if necessary, the cable can be removed and the junction box reused)
- Prewired with clearly labelled cable inlets (easy to wire, hard to make mistakes)
- Made at the Quickwire factory in the UK (great quality, and supports British manufacturing)
- Screwless, push-fit design - no screws, clips, clamps, or covers! (No screwdriver needed, it’s really easy to use)
23mm x 31mm x 84mm (wired)
Conductor Size:
1.0mm² - 1.5mm²
Twin & Earth (CPC) Solid cores
Class 1 (conductors)
Note:
This product is designed for lighting installations only
Technical:QuickWire Brochure - 1.75mb pdf QWSP34 Datasheet - 1mb pdf |
|
