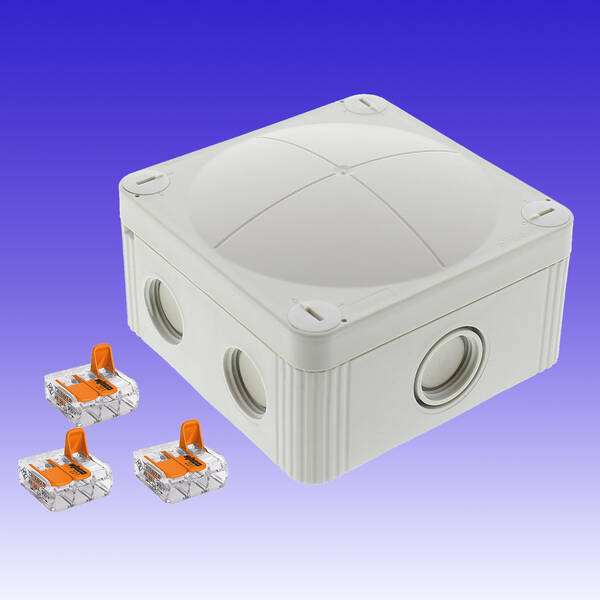

32A Wiska 407 Junction Box LS0H 95x95x60mm + 3 Wago 413C - Grey IP66/67
Product Code: WK 407/221G
4007686201215
10109674
Loading …
The sealing technique ensures a high life expectancy even under permanent influence of moisture
Empty Box Volume: 300ml
IP 68 up to a water depth of 15 meters according to DIN EN 60529
Wiska Box - IP66
95 x 95 x 60mm Grey
c/w 3 x Wago 221-413C
95 x 95 x 60mm Grey
c/w 3 x Wago 221-413C
30% saving on labour. Cables quickly introduced without any kind of tool,
thanks to WISKA COMBI's openings with soft self-sealing diaphragm (WK108 up to WK607).
Cable glands can be screwed directly into the integrated thread in the WK308, WK407 and WK607, no more need for lock nuts.
Little screws that can't be lost. The quick-release lid screws made of plastic will not rust and stay
securely in place just where they belong - in the WISKA COMBI Box.
Good to look at
The 'Designer Box'. The WISKA COMBI with its unmistakeable
'bellied' lid provides the utmost in visual and functional perfection.
Now you can install with system AND with style.
- Waterproof junction box up to 4mm² (32A)
- 95 x 95 x 60 mm
- 8 elastic self-sealing cable-inlets (clamping range 3-12 mm)
- Integrated M 20 threads, for cable glands no locknuts necessary
- 4 quick-release lid screws in the cover
- Fixing with the fast mounting clip or
internally located openings out of the sealing area - Includes terminal carrier on quick mounting plate mounted with 3 x WAGO 221-413
- 10% more room inside, thanks to the bellied cover
- 30% saving on labour thanks to faster cable-entry
- Captive quick-release lid screws
- Strong
Stable, safe and secure. The WISKA COMBI with its high IP 66 Degree of Protection is weather-proof, impact-resistant and shatter-proof. Eminently suitable for extreme conditions or for outdoor installations. - All WISKA COMBI Boxes are flame-retardant, halogen free, and are highly resistant to animal or vegetable fats, mineral oil, diesel, weak acids, strong and weak alkaline solutions, or alcohol.
The sealing technique ensures a high life expectancy even under permanent influence of moisture
Empty Box Volume: 300ml
IP 68 up to a water depth of 15 meters according to DIN EN 60529
Technical:IP Rating Chart Wiska Gel Solutions.pdf 850kb Datasheet - 260kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WK 407/221G
32A Wiska 407 Junction Box LS0H 95x95x60mm + 3 Wago 413C - Grey IP66/67 |
