40mm Compression Gland LSF + Locknut for Cable 16-28mm - Black (5 Pack)
Product Code: WK GLP40B
4007686025354
99711
Loading …

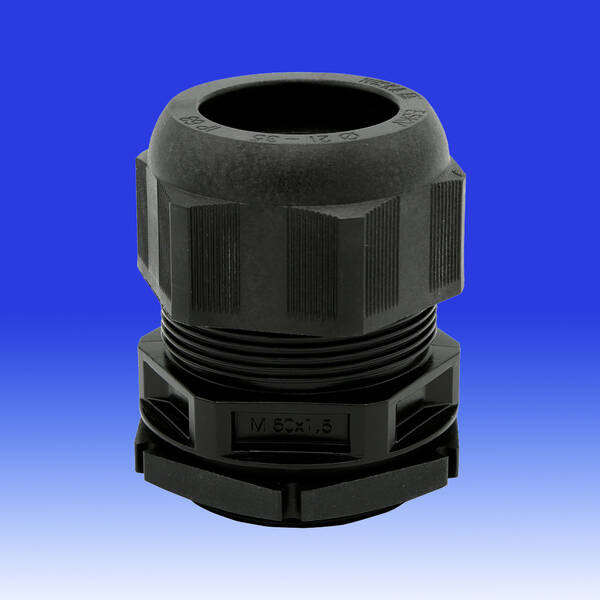

50mm shown
Dimensions
Wiska
40mm IP68 Compression Gland LSF c/w Locknut - Black
(5 Pack)
40mm IP68 Compression Gland LSF c/w Locknut - Black
(5 Pack)
Product Colour - RAL 9005.
Order no. RAL 9005 - 10106660.
Type - GLP40 Black.
Pack of 5
Protection class: IP69, IP68 (5 bar 30 min).
Order no. RAL 9005 - 10106660.
Type - GLP40 Black.
Pack of 5
Protection class: IP69, IP68 (5 bar 30 min).
- Dimensions
- Length screw-in thread (L): 12mm
- Collar diameter ( E ): 51mm
- Total length (TL): 52mm - 65mm
- Ø Connection thread ( D ): 40mm
- Nut Size ( SW ): 46mm
- Ø cable diameter min: 16mm
- Ø cable diameter max: 28mm
- Material cable gland: Polyamide
- Material sealing gasket: EPDM
- Glow wire test: 750°C
- Type of cable anchorage: A
- Temp. range min: -40°C
- Temp. range max: 100°C
- Install. torques fitting: 20N/m
- Install. torques cap nut: 20N/m
Technical:WKGLP40B Datasheet - 220kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WK GLP40B
40mm Compression Gland LSF + Locknut for Cable 16-28mm - Black (5 Pack) |
