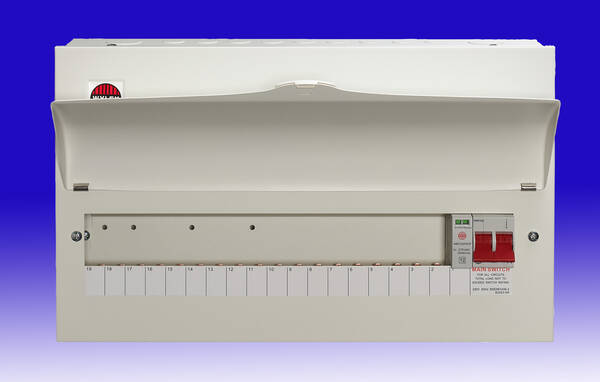

18 Way Metal Consumer Unit c/w 100A Main Switch + SPD
Product Code: WY NM1806LS
5013601110653
NM1806LS
Loading …
Height: 261mm
Width: 438mm
Depth: 121mm
Wylex
18 Way Metal Consumer Unit
c/w 100A Switch & SPD
18 Way Metal Consumer Unit
c/w 100A Switch & SPD
18 Way Main Switch plus SPD consumer unit.
Includes a 100A Main Switch with twin line and neutral supply terminals and a 100A fixed busbar assembly.
Fitted with the Wylex miniature type 2 SPD, NMT2SPD3W/1.
Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs.
Constructed from a full metal enclosure with curved visor and temporary locking facility.
Includes a 100A Main Switch with twin line and neutral supply terminals and a 100A fixed busbar assembly.
Fitted with the Wylex miniature type 2 SPD, NMT2SPD3W/1.
Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs.
Constructed from a full metal enclosure with curved visor and temporary locking facility.
- Amperage: 100A
- Operating voltage: 230V
- Type of current: AC
- Frequency: 50Hz
- Number of poles main switch: 2
- Type 2 surge protection device
- Busbar type: fixed
- Over voltage protection: Yes
- Material housing: Steel
- Degree of protection: IP2XC
- Lockable cover
- Conforms to BS EN 61439-3
Height: 261mm
Width: 438mm
Depth: 121mm
Technical:Installation Instructions - 350kb pdf WYNM1806LS Datasheet - 560kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WY NM1806LS
18 Way Metal Consumer Unit c/w 100A Main Switch + SPD |
Wylex NM L MCBs - B Type
Loading …
Wylex NM L MCBs
B Type
B Type
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Wylex NM L MCBs - C Type
Wylex NM L MCBs
C Type
C Type
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Wylex NM L RCBOs B Type
Loading …
WYNHXS1B06
Wylex NM L RCBOs
B Type - Compact
B Type - Compact
Single module, Miniature Bi-Directional RCBO.
- B curve (MCB), 30mA Type A (RCD)
- Single pole with switched neutral
- No miss busbar connection
- Fits NM & NMX consumer units and NHL range Distribution Boards
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Wylex NM L RCBOs C Type
Loading …
WYNHXS1C06
Wylex NM L RCBOs
C Type - Compact
C Type - Compact
Single module, Miniature Bi-Directional RCBO.
- C curve (MCB), 30mA Type A (RCD)
- Single pole with switched neutral
- No miss busbar connection
- Fits NM & NMX consumer units and NHL range Distribution Boards
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Wylex - DP AFDD Type A - 6KA
Loading …
WYNXSB06AFD
Wylex
30mA DP AFDD / RCBO
B Curve - Type A
30mA DP AFDD / RCBO
B Curve - Type A
Single module, Miniature Bi-Directional AFDD/RCBO combined.
Able to detect Arc Faults.
No miss busbar connection.
Single pole with switched neutral.
Same size as a standard MCB - Can be retofitted into existing boards to upgrade the levels of protection against electrical fires.
What buildings will be compulsory: Final socket circuits not exceeding 32A.
Higher Risk Residential Buildings (HRRB): Over 18M high or 6 stories what ever comes 1st.
Houses in Multiple Occupation (HMO).
Purpose built student accommodation.
Care homes.
Dimensions:
Height: 90mm.
Width: 18mm.
Depth: 77mm.
Able to detect Arc Faults.
No miss busbar connection.
Single pole with switched neutral.
Same size as a standard MCB - Can be retofitted into existing boards to upgrade the levels of protection against electrical fires.
What buildings will be compulsory: Final socket circuits not exceeding 32A.
Higher Risk Residential Buildings (HRRB): Over 18M high or 6 stories what ever comes 1st.
Houses in Multiple Occupation (HMO).
Purpose built student accommodation.
Care homes.
Height: 90mm.
Width: 18mm.
Depth: 77mm.
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Sprint Cable Entry Glands - for all twin and earth cables
Loading …
Sprint Cable Entry Glands
offer full protection for all twin and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF WKTKEP50 Datasheet pdf Datasheet - 690kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Brass Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Brass Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
32mm Tail Kit Brass - 2 x 16mm Tail & 1 x 16mm Earth Cables --- Price Drop --- |
|
Wiska - Sprint - Flame Retardant Grommets Cable Entry Kit EMT-F
Loading …
SPRINT
Flame Retardant Grommets Kit
Flame Retardant Grommets Kit
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Made from Flame Retardant Material
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Digital DIN Rail Mounting Compact Timers
Loading …
SM NTDR16C
GK T80C
Digital DIN Rail Mounting Compact Timers
16A Resistive, 2A Inductive
16A Resistive, 2A Inductive
For use in control panels, distribution boards and consumer units.
24hr/7 day programming.
Volt free contacts.
24hr/7 day programming.
Volt free contacts.
Technical:Instructions - pdf 109kb SMNTDR16C Datasheet - 375kb pdf Instructions - 720kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
100mm x 100mm Maxi Trunking c/w End Caps - 1Mtr length
Loading …
Supplied with 2 End Caps
100mm x 100mm PVC Trunking c/w End Caps
1Mtr length
1Mtr length
Designed for use with consumer unit and distribution board Installations
|
