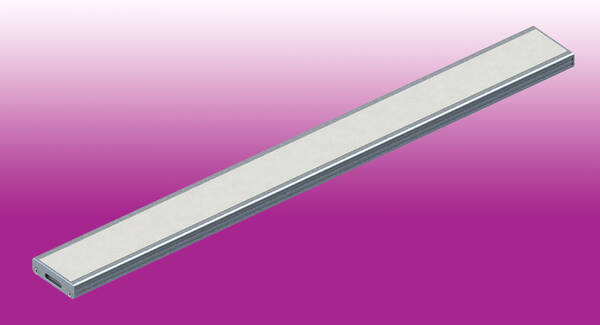

6W LED Ultra Slim Cabinet Light Kit - CCT Changeable
Loading …
Watch VideoFitting dimensions:
Length: 392mm
Width: 41mm
Depth: 10mm
Length: 392mm
Width: 41mm
Depth: 10mm
See product for Accessories
6W LED Ultra Slim Cabinet Light Kit
CCT Changeable
CCT Changeable
Ultra Slim LED Cabinet Light set, featuring a hand-sweep sensor for ON/OFF functionality
and a touch sensor to change colour temperature and brightness.
With a slim, light body that is easy to install on any type of surface, it makes the perfect illuminating option for tight spaces. Suitable for cabinets, bedrooms, hallways, wardrobes, bookcases, kitchens, staircases, drawers, utility rooms, etc.
The lights are linkable (up to 3 lights per power supply can be linked together), in addition to being supplied with a choice of connections and fixings, allowing flexible applications in multiple combinations.
and a touch sensor to change colour temperature and brightness.
With a slim, light body that is easy to install on any type of surface, it makes the perfect illuminating option for tight spaces. Suitable for cabinets, bedrooms, hallways, wardrobes, bookcases, kitchens, staircases, drawers, utility rooms, etc.
The lights are linkable (up to 3 lights per power supply can be linked together), in addition to being supplied with a choice of connections and fixings, allowing flexible applications in multiple combinations.
- Input voltage: 220-240V AC
- Output: 12V DC, 1.5A
- Wattage: 6W
- LEDs: SMD4014, 80pcs.
- CCT changeable: 3000K / 4000K / 6000K
- Light output: 440lm
- CRI (Ra): >80
- Aluminium body with polycarbonate diffuser
- Operating temperature: -20°C to 45°C
- IP rating: IP20
- Ultra thin and simple design
- Hand sweep function: OFF/ON
- Touch key function: CCT adjustment & brightness
- Multiple combinations, flexible application
- Soft light for reduced eye strain
- Wide beam angle with no glare
- Linkable (max. 3 pcs)
- Power supply included
- Choice of installation using screws or magnetic clips
- 2 year warranty
Watch VideoFitting dimensions:
Length: 392mm
Width: 41mm
Depth: 10mm
Length: 392mm
Width: 41mm
Depth: 10mm
| See product for Accessories |
Technical:LTSCL6CCT Datasheet - 540kb pdf Instructions - 170kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Ultra Thin LED Light Fittings
Loading …
Supplied with every fitting
1 x coupler
1 x 1 metre connection lead
(LE DLEAD)
Optional Corner coupler
See product for Accessories
Ultra Thin LED Light Fittings
Amazing - Unique - Wait till you see them
Energy saving, bright under cupboard lights - Interlinkable
Improved light output over similar Halogen or Triphosphor fluorescent tubes
Matt silver with black ends
Compact design,
Depth - 8mm - Width 33mm
Easy installation with mounting clips and screws included
Available with a cool white or warm white light
Fittings can be linked with 1mtr cable or coupled together (included with each fitting)
Required LE DAD36 Plug and Play Driver/Transformer (max 36 watts)
For larger and more complicated arrangements
Loads of up to 300 watts can be achieved
using 8 Way splitters and hard wired drivers
To use bigger drivers you need to remove the plug from the lead supplied and wire to one of the drivers below
The fittings are POLARITY sensitive the lead supplied is marked as follows
White broken line side of cable is "+" Positive ,
The side with letters and number) is "- "Negative
Suitable for use in home or office, under kitchen cabinet, shelves,
display cabinets, bookcases, mirror framing etc
Supplied with every fitting
1 x coupler
1 x 1 metre connection lead
(LE DLEAD)
Optional Corner coupler
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

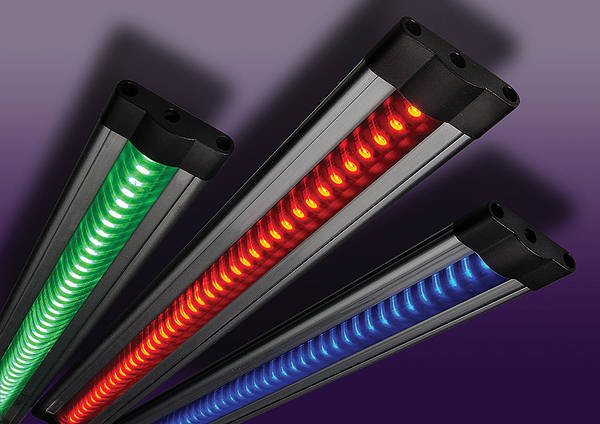

Ultra Thin LED Light Fittings - Colour
Loading …
See product for Accessories
Ultra Thin LED Light Fittings
- Colour-
- Colour-
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Ultra Thin Corner - Cove Light Fittings
Loading …
Supplied with every fitting
1 x coupler
1 x 1 metre connection lead
(LE DLEAD)
See product for Accessories
Ultra Thin Corner / Cove Light Fittings
Amazing - Unique - Wait till you see them
Energy saving, bright under cupboard lights - Interlinkable
Improved light output over similar Halogen or Triphosphor fluorescent tubes
Matt silver with black ends
Compact Triangular Linear Design
Width/Height: 24mm - Diagonal 33mm - Projection: 20mm
Easy installation with mounting clips and screws included.
Available with a cool white or warm white light.
Fittings can be linked with 1mtr cable or coupled together (included with each fitting)
Required LE DAP36 Plug and Play Driver/Transformer (max 36 watts)
For larger and more complicated arrangements
Loads of up to 300 watts can be achieved
using 8 way splitters and hard wired drivers
To use bigger drivers you need to remove the plug from the lead supplied and wire to one of the drivers below
The fittings are POLARITY sensitive the lead supplied is marked as follows
White broken line side of cable is "+" Positive ,
The side with letters and number) is "- "Negative
Suitable for use in home or office, under kitchen cabinet, shelves,
display cabinets, bookcases, mirror framing etc
Supplied with every fitting
1 x coupler
1 x 1 metre connection lead
(LE DLEAD)
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Ultra Thin Corner - Cove Light Fittings - Colour
Loading …

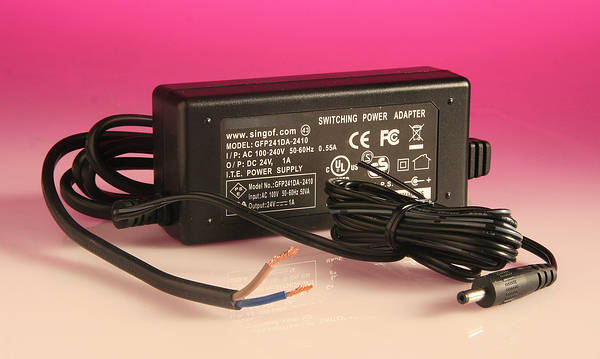

LE DAD36
Ultra Thin Corner - Cove Light Fittings
-Colour-
-Colour-

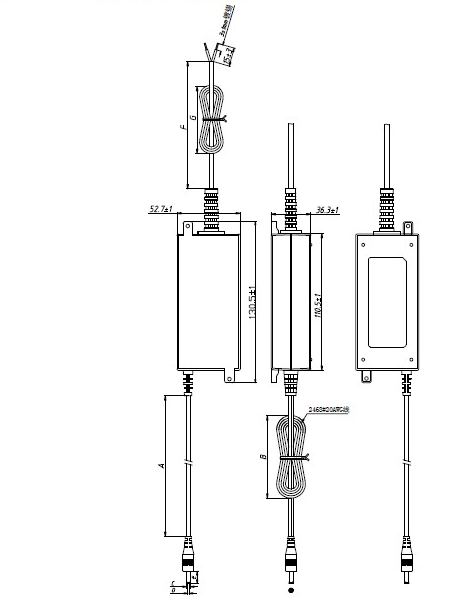

Technical:LEDAD36 Datasheet LEDAD36 Instructions LEDAD36 Line Drawing |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
LED Undercupboard Fittings - Accessories
Loading …
See product for Accessories
LED Undercupboard Fittings - Accessories
To use bigger drivers you need to remove the plug from the lead supplied and wire to one of the drivers below
The fittings are POLARITY sensitive the lead supplied is marked as follows
White broken line side of cable is "+" Positive ,
The side with letters and number) is "- "Negative
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

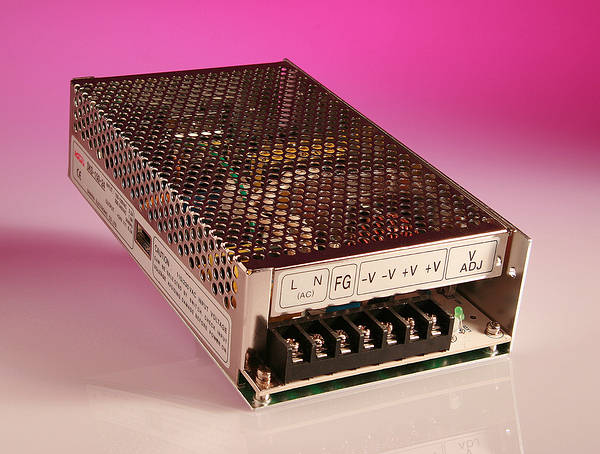

24v DC LED Drivers
Loading …
See product for Accessories
24v DC LED Drivers
To use bigger drivers
Triangular Fittings you need to remove the plug from the lead supplied and wire to one of the drivers below
Flat Fittings use LEDTD2
The fittings are POLARITY sensitive the lead supplied is marked as follows
White broken line side of cable is "+" Positive,
The side with letters and number) is "-" Negative
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
