24A Waterproof Connector c/w Wago 3 Pole x 4mm² - Grey - IP68
Product Code: WK CJWG
4007686294699
10112269 / WKCJWG
Loading …
134mm x Ø29mm
Wiska
24A Waterproof Connector c/w Wago 3 Pole x 4mm²
Grey - IP68
24A Waterproof Connector c/w Wago 3 Pole x 4mm²
Grey - IP68

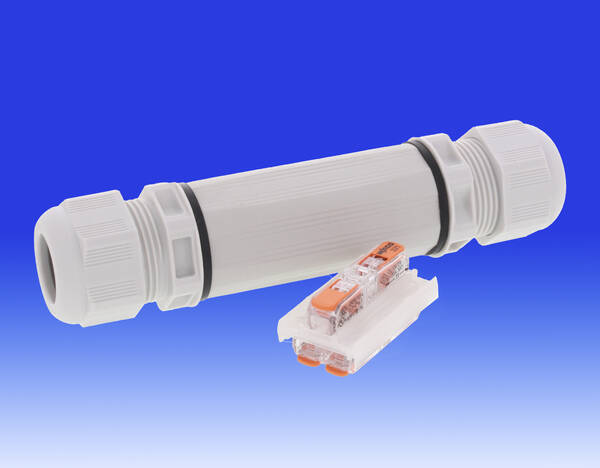

IP68 jointing sleeve complete with 3 x WAGO inline connectors, 0.2 - 4mm²
Wiska's new inline cable joint offers installation options in the smallest of spaces and enables two cables to be connected without any problems. With a protection class of IP68, it is also a tough connection for use in demanding conditions.
The connector comes complete with 2 x M25 ESKV cable glands, offering 9-17mm clamping range. This means that it can be used with a wide range of sealing inserts and accessories – making the unit even more flexible when used with different cables.
Wiska's new inline cable joint offers installation options in the smallest of spaces and enables two cables to be connected without any problems. With a protection class of IP68, it is also a tough connection for use in demanding conditions.
The connector comes complete with 2 x M25 ESKV cable glands, offering 9-17mm clamping range. This means that it can be used with a wide range of sealing inserts and accessories – making the unit even more flexible when used with different cables.
- IP68 protection class
- Tested up to 5 bar for 30 minutes
- Complete with 3 x WAGO 221 inline splicing connectors mounted on a unique bracket designed to fit perfectly inside
- Terminals/poles: 3 x 4mm² (24A total)
- Cable diameter min.: 9mm
- Cable diameter max.: 17mm
- Working temp. range: -30°C to 85°C
- Glow wire test: 750°C
134mm x Ø29mm
Technical:IP Rating Chart Brochure - 2.2mb pdf Datasheet - 200kb pdf |
|
