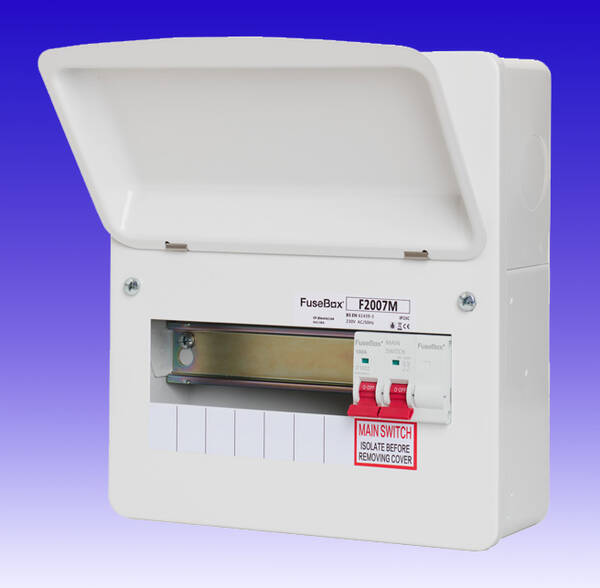

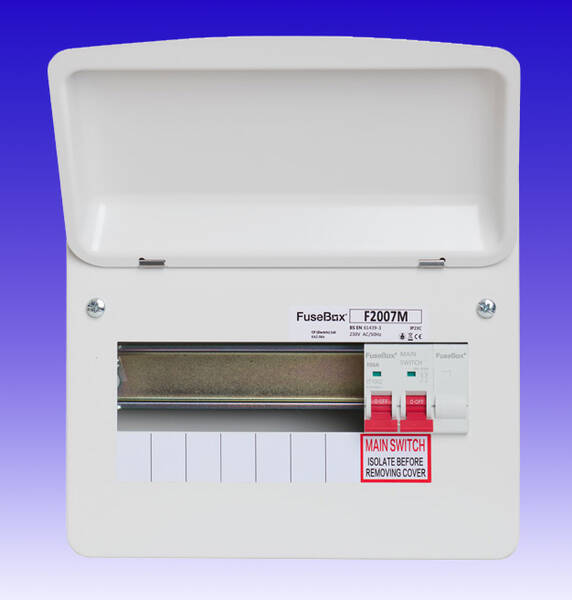

7 Way Metal Consumer Unit c/w 100A Main Switch
Product Code: FB F2007M
5060523523870
F2007M
Loading …
Height: 259mm
Width: 234mm
Depth: 113mm
FuseBox
7 Way Metal Consumer Unit
c/w 100A Main Switch
7 Way Metal Consumer Unit
c/w 100A Main Switch
The FuseBox circuit protection range of metal consumer units and protection devices
offers flexible, versatile solutions for electrical installations.
All FuseBox products are designed in accordance with current standards and are independently tested.
offers flexible, versatile solutions for electrical installations.
All FuseBox products are designed in accordance with current standards and are independently tested.
- Earth and neutral terminal bars at the top
- Removable and raised DIN rail
- Round knock-outs on all faces
- Extra height for RCBO’s
- 1mm electro-galvanised steel (zinc)
- RAL 9001 powder-coated finish
- Circuit identification labels
- Captive screws on front cover
- IP20XC
- BS EN61439-3
Height: 259mm
Width: 234mm
Depth: 113mm
Technical:Datasheet - 325kb pdf FuseBox Brochure - 7mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
FB F2007M
7 Way Metal Consumer Unit c/w 100A Main Switch |
FuseBox MCB - B Type
Loading …
FuseBox
B CURVE MCB 6kA 1P
B CURVE MCB 6kA 1P
6kA MCB for FuseBox consumer units.
Manufactured and tested to EN/IEC 60898-1 standards.
Manufactured and tested to EN/IEC 60898-1 standards.
- Cable capacity: 16mm²
- Breaking capacity: 6kA
- B curve
Technical:Datasheet - 230kb pdf FuseBox Brochure - 7mb pdf MCB Datasheet - 275kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox 30mA RCBO - (Type A) B Curve
Loading …
FuseBox
30mA RCBO - Type A
B Curve
30mA RCBO - Type A
B Curve
6kA Type A RCBO for FuseBox consumer units.
Manufactured and tested to EN/IEC 61009-1 standards.
Manufactured and tested to EN/IEC 61009-1 standards.
- Sensitivity: 30mA
- Cable capacity: 16mm²
- Breaking capacity: 6kA
Technical:Datasheet - 230kb pdf FuseBox Brochure - 7mb pdf RCBO Datasheet - 300kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox 30mA RCBO - (Type A) B Curve - Compact
Loading …
FuseBox
30mA RCBO - Type A
B Curve - Compact
30mA RCBO - Type A
B Curve - Compact
Compact RCBO with switched LINE and NEUTRAL. Used for the protection against overload, short circuit and earth leakage. Type A for AC and pulsating DC sensitivity with a short circuit capacity of 6kA.
Compact in size, increasing working space within a FuseBox consumer unit making installation,
connection and testing easier and quicker.
Flying Neutral cable can be cut to suit but should be terminated.
Compact in size, increasing working space within a FuseBox consumer unit making installation,
connection and testing easier and quicker.
Flying Neutral cable can be cut to suit but should be terminated.
- Rating: 6A to 40A
- Tripping curve: B
- Number of poles: 1P + N (switched neutral)
- Residual Operating Current: 30mA
- Type: A
- Rated short circuit capacity: 6kA
- Maximum cable capacity: 16mm²
- Complies with IEC 61009-1 & IEC 61009-2-2
Technical:Datasheet - 230kb pdf FuseBox Brochure - 7mb pdf Compact RCBO Datasheet - 250kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox Type 2 Single Phase SPD (Surge Protection Device)
Loading …
FuseBox
Type 2 SPD (Surge Protection Device) Kit c/w 32A MCB
Type 2 SPD (Surge Protection Device) Kit c/w 32A MCB
This Type 2 surge protection wiring kit provides superior protection against Transient overvoltages by diverting the surge to earth within <25ns, and protecting all loads/circuits connected to the consumer unit.
The kit comes complete with 1 x Type 2 SPD, 1 x 32A MCB plus Live, Neutral & Earth wires.
The kit comes complete with 1 x Type 2 SPD, 1 x 32A MCB plus Live, Neutral & Earth wires.
- Type 2 Single Phase Surge Device + 32A B Curve MCB
- Complete kit for easy installation
- Response time < 25ns
- Status indicator
- Space saving 1 module design
- 35mm DIN rail mounted
- Suitable for domestic/commercial installations
- Fully compliant to BSEN61643-11
Technical:Datasheet - 1.35mb pdf FuseBox Brochure - 7mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox 30mA DP AFDD/RCBO B Curve (Type A) 6KA
Loading …
FuseBox
30mA DP AFDD/RCBO B Curve (Type A) 6KA (1 Module)
30mA DP AFDD/RCBO B Curve (Type A) 6KA (1 Module)
FuseBox combined AFDD/ RCBO (1P+N) Switched.
- Fully compliant and 3rd party tested to BS EN 62606 / IEC 61009-1
- LED fault indication
- Fits all FuseBox consumer units
- Replaces any FuseBox RCBO where additional ARC protection may be required
- Used for the protection against ARC faults (series and parallel), overload, short circuit and earth leakage
- Type A for AC and pulsating DC sensitivity
- Short circuit capacity of 6kA with a maximum rating of 40A
Technical:AFDD Datasheet - 415kb pdf FuseBox Brochure - 7mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Sprint Cable Entry Glands - for all twin and earth cables
Loading …
Sprint Cable Entry Glands
offer full protection for all twin and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF WKTKEP50 Datasheet pdf Datasheet - 690kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Brass Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Brass Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
32mm Tail Kit Brass - 2 x 16mm Tail & 1 x 16mm Earth Cables --- Price Drop --- |
|
Wiska - Sprint - Flame Retardant Grommets Cable Entry Kit EMT-F
Loading …
SPRINT
Flame Retardant Grommets Kit
Flame Retardant Grommets Kit
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Made from Flame Retardant Material
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Flexi Meter Tail Packs
Loading …
See product for Accessories
Flexi Meter Tail Packs
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Digital DIN Rail Mounting Compact Timers
Loading …
SM NTDR16C
GK T80C
Digital DIN Rail Mounting Compact Timers
16A Resistive, 2A Inductive
16A Resistive, 2A Inductive
For use in control panels, distribution boards and consumer units.
24hr/7 day programming.
Volt free contacts.
24hr/7 day programming.
Volt free contacts.
Technical:Instructions - pdf 109kb SMNTDR16C Datasheet - 375kb pdf Instructions - 720kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
100mm x 100mm Maxi Trunking c/w End Caps - 1Mtr length
Loading …
Supplied with 2 End Caps
100mm x 100mm PVC Trunking c/w End Caps
1Mtr length
1Mtr length
Designed for use with consumer unit and distribution board Installations
|
